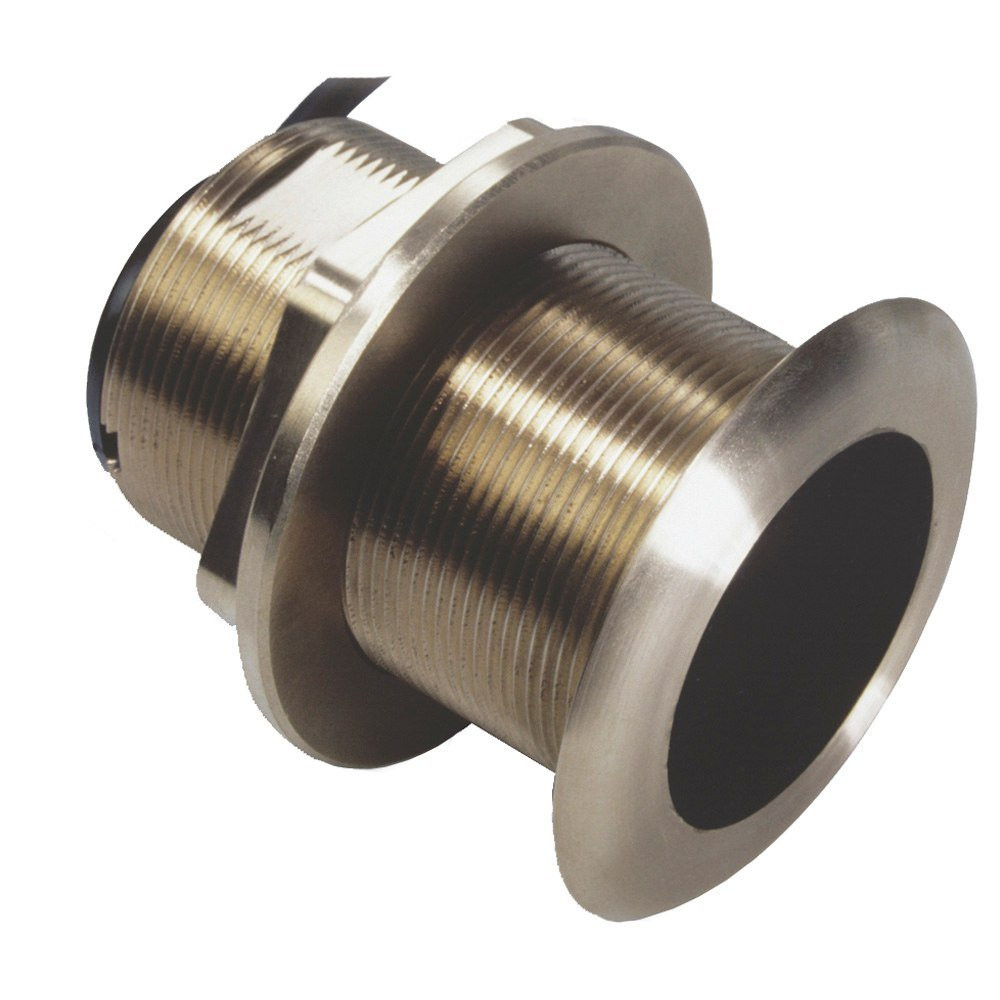

Lowrance B60-12, 12 Degree Tilted Element Transducer
Lowrance B60-12, 12 Degree Tilted Element Transducer, B60 Tilted Element(TM) 12deg12deg tilted version is designed for 8deg - 15deg deadrise anglesThe bronze B60-12deg provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.Features: Depth/Temp 50/200 kHz 600w RMS Mid-performance Bronze; This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. - cis2:mm5mnJlm -Specifications: Temperature: Yes; Speed Included: No; Pins: 7; Mounting Style: Thru-Hull; Imagining: Standard; Chirp: No; Cable Length (Feet): 30'; Box Dimensions: 4"H x 8"W x 10"L WT: 4.85 lbs; Owner's Manual (pdf)Brochure (pdf)
